Key figures of value stream modeling > Simulation results (dynamic key figures)

This results section contains a data table for each customer, specifying the time shares for production, transport, and storage for the parts arriving at the customer object.

Parts that have not passed through the entire value stream (starting at a supplier) are not taken into account. This is necessary so that the statistics are not distorted by initial stock, for example.

Contents

1. Customer – Delivered product statistics

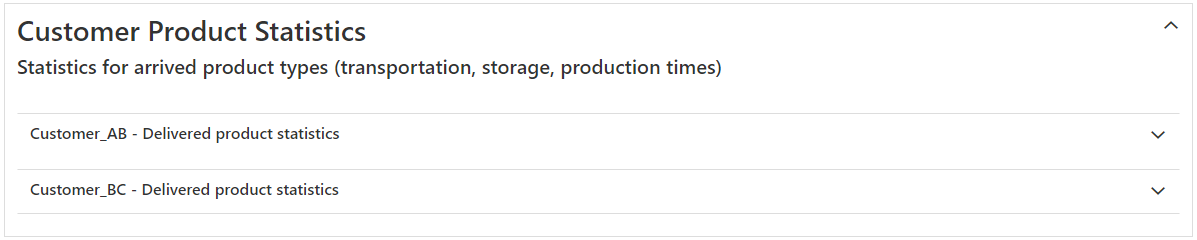

Figure 1 shows an overview of individual distributions of the key figure product statistics 20230413_sim_ergebnisse_kundenprodukt_0_EN

Figure 1 - Customer product statistics overview

1. Customer – Delivered product statistics

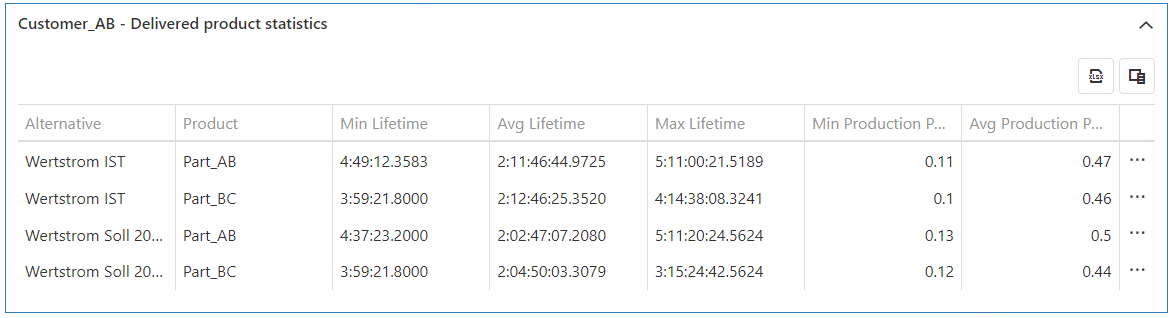

20230413_sim_ergebnisse_kundenprodukt_1_EN

Figure 2 - Customer – Delivered product statistics

Via the More button

hidden columns can be displayed, as seen in figure 3.

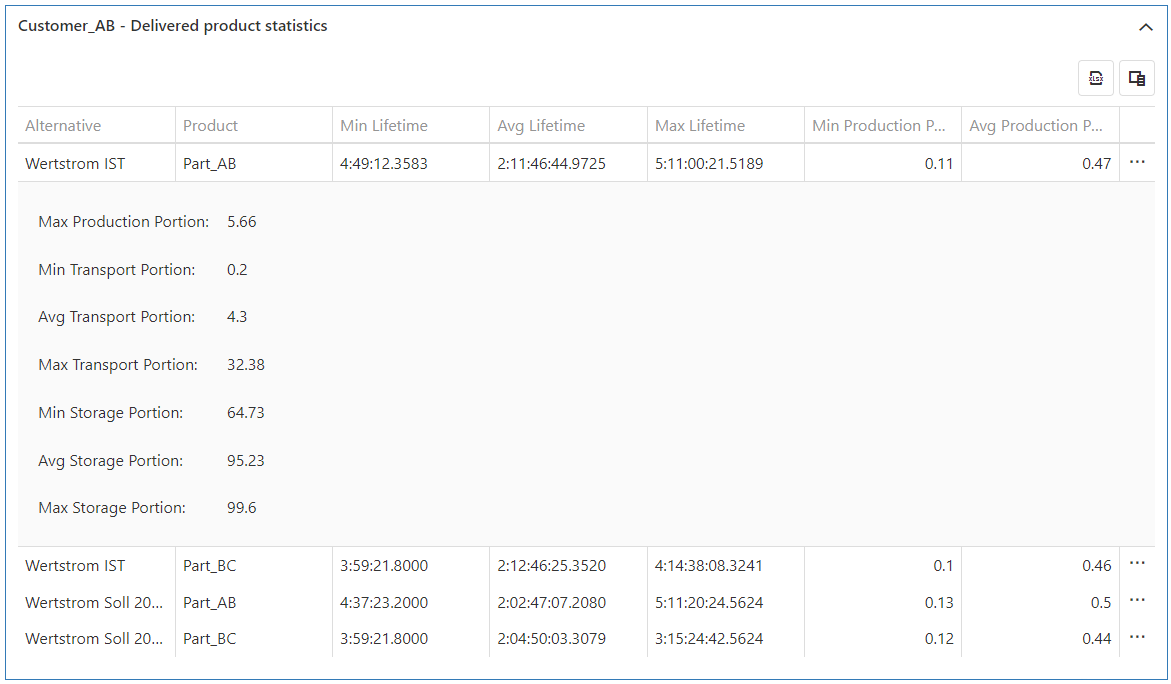

20230413_sim_ergebnisse_kundenprodukt_2_EN

Figure 3 - Customer – Delivered product statistics hidden columns
