Parameterizing value stream objects > Object and product related settings

The following options are available for recording a time series via the stopwatch functionality

Enter manually

The desired values can be entered manually in the input field (see Figure 1).

Figure 1 - Enter values

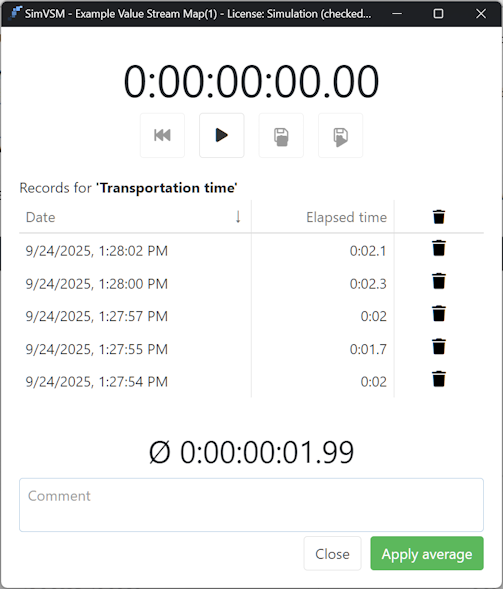

A click on the timer button

opens a new window in which the measured values can be recorded (see Figure 2)

20250924_stopwatchoverview

Figure 2 - Record measurements

The following table gives an overview of the available buttons

Button	Description
	The reset button resets the measured value
	The start button starts the measurement
	The save-end button saves the measurement and ends measuring
	The save-continue button saves the measurement and advances the measurement
	The delete button deletes the measurement
	The button Apply average accepts the average of all created measurements and closes the window
	The Close button closes the window and discards the changes made
	The white timer button indicates that the time was entered manually
	The orange timer button indicates that there are measured values, but manually changed afterwards
	The green timer button indicates that the time originates from the measured values created
